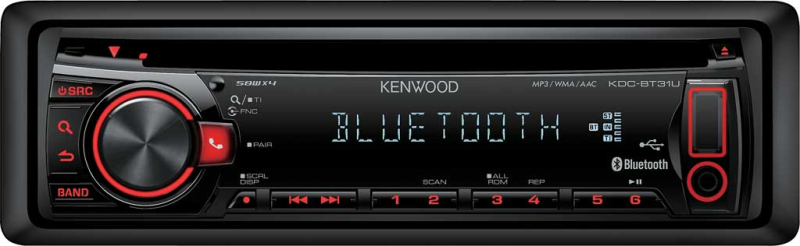

Kenwood KDC-BT31U

autorádio s predným AUX vstupom, zabudovaným bluetooth a červeným podsvietením

mp3/wma/aac/cd/usb

General Features
DIN Size: 1 DIN
Detachable Faceplate: Yes
Protection Case For Faceplate: Yes, soft case
Faceplate Mechanism: Full Detachable Faceplate
Key Illumination: Red
Rotary Encoder & Control Knob: Yes
Music Search function: Yes
Accent key: Yes, (telephone key)
Digital Clock (24H): Yes
All-off Select (20/40/60 minutes): Yes
Built-in Connector: Molex 16 pin
ISO connector: Yes
USB interface: x 1 Yes, Front

Display Features
Display Type Fluorescent (FL): Tube Display
Display Layout: 13 segments x 11 Characters
Display: Illumination Flouricent (FL)
Dimmer Control: 2 steps - Manual
Demo Mode: Yes
Special Character: Display Russian Characters

Cosmetics features
Front/edge: Piano black
Dress plate: Piano Black
Volume & operation knob or wheel: black injection
Preset key finish: Piano Black
Escutcheon finish: Black Injection
Triangle Illumination: Red
Volume & operation knob illumination: Red
Key illumination: Red

Tuner Features
Radio Data System: Yes
Radio Text: Yes
Program Type Function (PTY): Yes
Enhanced Other Networks Function (EON): Yes
PACS - clean reception tuner: Yes
FM Reception: Yes
AM (MW/LW) Reception: Yes
Presets: 24 Presets (18FM / 3LW / 3MW)
Mixed preset memory (FM & AM): 6 presets
Automatic Memory Entry (AME): Yes
Up/Down Seek Tuning: Yes
Tuning mode (Auto1 / Auto2 / Manual): Yes
FM Stereo / Mono Selector: Yes

CD Features
CD-R/RW Compatible: Yes
MP3 Playback with ID3 Tag Display: Yes
WMA (Windows Media Audio) Playback: Yes
AAC (Advanced Audio Coding) Playback: Yes
Compatible with Kenwood Music Editor Lite: Yes
CD Text Support: Yes
CD Text with special Character Support: Yes, Russian
Supreme: Yes
D.A.C. processing: 24 bit
0 bit Mute: Yes

USB Features
USB terminal: Yes, Front
USB Type: USB1.1 / USB 2.0
Kenwood Music Editor Lite: Yes, (download from site)
MP3 playback with ID3 Tag Display: Yes
WMA (Windows Media File) playback: Yes
AAC (Advanced Audio Codec) playback: Yes
Repeat/Scan/Random search: Yes

Audio Features
Maximum Output Power: 50W x 4
MOSFET Power IC: Yes
Auxiliary input: Yes, front
Auxiliary Type: Mini-jack
Pre-out: 1 RCA
Pre-out Output Level: 2V
Preout Rear / Subwoofer Switchable: Yes
Subwoofer Reference Level Adj.: Yes
Source Tone Control & Memory: Bass / Mid / Treble
Balance/Fader Control: Yes
System Q_EX (Preset & Manual Sound Control): Yes
Bass Boost Circuit: Yes
Low-pass Filter: Yes

Bluetooth General Features
Hands free Profile (HPF): Yes
Serial Port Profile (SPP): Yes
Headset Profile (HSP): Yes
Phonebook Access Profile (PBAP): Yes
Object Push Profile (OPP): Yes
Synchronization Profile (SYNC): Yes
Easy pairing function: Yes
Phone device status display: Yes
Signal strength display: Yes
Remaining battery display: Yes
Bluetooth phones to register: 5
High-quality noise canceling microphone: Yes, built-in
Bluetooth firmware upgradeable: Yes
* depends on phone model/make & Kenwood unit

Connectivity
USB interface: Yes
OEM Wired Remote Control: Yes
2-way (Tel/Navi) mute wire: Yes

Tuner Specifications
FM Frequency range (50kHz step): 87.5MHz ~ 108MHz
FM Usable Sensitivity: 1μV/75ohm (S/N 26dB)
FM Quieting Sensitivity: 2.5μV/75ohm (S/N 46dB)
FM Signal to noise ratio (Mono): 63dB
FM Stereo Separation (1kHz): 40dB
MW Frequency Range: 531kHz ~ 1611kHz
MW Frequency step: 9kHz
MW Usable Sensitivity: 36μV (S/N 20dB)
LW Frequency Range: 153kHz ~ 279kHz
LW Usable Sensitivity: 57μV (S/N 20dB)

CD Specifications
Laser Diode: GaAlAs
Digital Filter(D/A): 8 Times Over Sampling
Digital/Analogue Converter: 24 Bit
Wow & Flutter: below measurable limit
Frequency Response: 20Hz ~ 20kHz (±1dB)
Total Harmonic Distortion: 0.01% (1kHz)
Signal to Noise Ratio: 105dB (1kHz)
Dynamic Range: 90dB
Channel Separation: 85dB
MP3 Decoder: Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder: Compliant with Windows Media Audio
AAC Decoder: AAC-LC ".m4a" files

USB Specifications
USB Version compatibility: 1.1 / 2.0
File System: FAT 16/32
Maximum Supply current: 500mA
MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
WMA Decode: Compliant with Windows Media Audio
AAC Decode: AAC-LC "m4a" Files

Audio Specifications
Maximum Power: 50W x 4
Output Power (DIN45324,+B=14.4v): 30W x 4
Preout Level: 2000mV / 10kOhm,
Preout Impedance: ≤ 600Ohm
Speaker Impedance: 4Ohm ~ 8Ohm
AUX Frequency Response: 20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage: 1200mV
AUX Input Impedance: 10kOhm
Bass Tone Control: 100Hz ±8dB
Middle Tone Control: 1kHz ±8dB
Treble Tone Control: 10kHz ±8dB

General Specifications
Operating voltage: 14.4V (11 ~ 16V Allowable)
Maximum Current Consumption: 10A
Dimensions (WxHxD): 182 x 53 x 158mm
Weight: 1300gr
