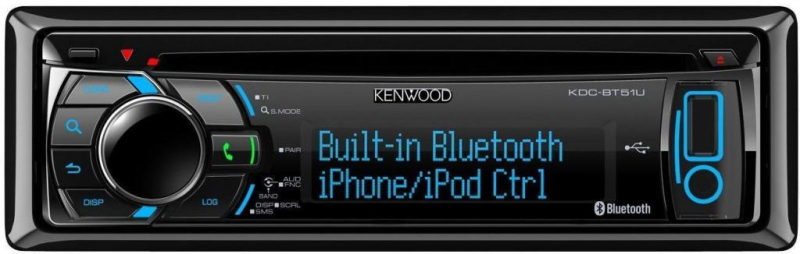

Kenwood KDC-BT51U

General Features
DIN Size: 1 DIN
Detachable Faceplate: Yes
Protection Case For Faceplate: Yes, softcase
Faceplate Mechanism: Full Detachable Faceplate
Key Illumination: Variable
Rotary Encoder & Control Knob: Yes
Music Search function: Yes
LOG function: Yes
Accent key: Yes, (2way Telephone)
Installer Memory: Yes
Attenuator with Smooth Volume Return: Yes, (only by IR remote)
Touch Sensor Tone: Yes
Optional IR remote controller: Yes, (RC405)
Digital Clock (24H): Yes
All-off Select (20/40/60 minutes): Yes
Built-in Connector: Molex 16 pin
ISO connector: Yes
Bluetooth unit built-in: Yes
USB interface: x 1 Yes

Display Features
Display Type: LCD Display
Display Layout: 3/2 line full dot
Display Illumination: Variable
Spectrum Analyzer: Yes
Dimmer Control: 2 steps - Automatic
Colour control: Yes
Display Off Mode: Yes
Demo Mode: Yes
Multi language menu & tag: Yes, English, French, German, Italian, Russian, Spanish

Cosmetics features
Front/edge: Piano black
Dress plate: Dark Silver
Volume & operation knob or wheel: Acrylic Clear (Black)
Preset key finish: Piano Black
Escutcheon finish: Piano Black
Triangle Illumination: Red
Volume & operation knob illumination: Variable
Key illumination: variable
Variable color illumination: Yes
Illumination Effect: Yes

Tuner Features
Radio Data System: Yes
Radio Text Plus: Yes
Program Type Function (PTY): Yes
K3I - Clean Reception Tuner: Yes
FM Reception: Yes
AM (MW/LW) Reception: Yes
Presets: 24 Presets (18FM / 3LW / 3MW)
Station Select
Tuner preset/recall key: Yes
Automatic Memory Entry (AME): Yes
Up/Down Seek Tuning: Yes
Tuning mode (Auto1 / Auto2 / Manual): Yes
FM Stereo / Mono Selector: Yes

CD Features
CD-R/RW Compatible: Yes
MP3 Playback with ID3 Tag Display: Yes
WMA (Windows Media Audio) Playback: Yes
AAC (Advanced Audio Coding) Playback: Yes
CD Text Support: Yes
Supreme: Yes
D.A.C. processing: 24 bit
0 bit Mute: Yes
Random Function (Track/Disc): Yes
Repeat Function (Track/Disc): Yes
Scan Function (Track/Disc): Yes

USB Features
USB terminal: Yes, Front side with slide protection cover
USB Type: USB1.1 / USB 2.0
ACDrive compatible: Yes
Kenwood Music Editor Lite: Yes, can be downloaded from website
MP3 playback with ID3 Tag Display: Yes
WMA (Windows Media File) playback: Yes
AAC (Advanced Audio Codec) playback: Yes

iPod Features
Made for iPod & iPhone*: Yes
USB Digital connection (1 wire): with option cable KCA-iP102
Music playback: Yes
Music library search: Yes
Alphabet search: Yes
Skip search: Yes
Related search: Yes
My playlist: Yes
Control by hand: Yes
Reverse browsing: Yes
2 Speed search: Yes
Works with iPod Classic*: 80G & 120G
Works with iPod Video*: 5th/6th generation
Works with iPod Touch*: 1st/2nd Gen
Works with iPod Nano*: 1st/2nd/3rd Gen
Works with iPhone*: Yes, iPhone, iPhone 3G, iPhone 3GS & iPhone 4
Battery charge + power control: Yes
* Always update to latest Apple firmware

External Media Control Features
Dual Changer Control (CH1, CH2 & AUX): Yes
CD Text Ready with Compatible KENWOOD Units: Yes
Disc & Track Repeat: Yes
Disc & Track Scan: Yes
Disc & Track Random Play: Yes
Bluetooth Handsfree: Yes
Bluetooth Audio Streaming: Yes
iPod Control with KCA-iP500: Yes
AUX RCA Adaptor: Yes

Audio Features
Maximum Output Power: 50W x 4
MOSFET Power IC: Yes
Auxiliary input: Yes, Front panel
Auxiliary Type: Mini-jack
Pre-out: 3 RCA
Pre-out Output Level: 2.5V
Subwoofer Reference Level Adj.: Yes
Built-In Amplifier Cut-Off: Yes
Dual-Zone Source & Volume Control: Yes
Dual-Zone (FRONT / REAR Switchable): Yes
Source Tone Control & Memory: Bass / Mid / Treble
Balance/Fader/Loudness Control: Yes
Balance/Fader Control: Yes
System Q (Preset Sound Control): Yes
Bass Boost Circuit: Yes
System E's+ (Built-in HPF & LPF): Yes

Bluetooth General Features
Hands free Profile (HPF): Yes
Serial Port Profile (SPP): Yes
Headset Profile (HSP): Yes
Phonebook Access Profile (PBAP): Yes
Object Push Profile (OPP): Yes
Synchronization Profile (SYNC): Yes
Short Message Service (SMS): Yes
2Way bluetooth key: Yes
Easy pairing function: Yes
Phone device status display: Yes
Signal strength display: Yes
Remaining battery display: Yes
High-quality noise canceling microphone: Yes, Built-in or external
Bluetooth firmware upgradeable: Yes
* depends on phone model/make & Kenwood unit

Connectivity
External Media Control Bus (5L): Yes
iPod Digital Connection (1 Wire): Yes, with optional KCA-iP101
USB interface: Yes
OEM Wired Remote Control: Yes
Power Control (P.CON) wire: Yes
Dimmer control wire: Yes

Tuner Specifications
FM Frequency Range: 87.5MHz ~ 108MHz
FM Frequency range (50kHz step): 87.5MHz ~ 108MHz
FM Usable Sensitivity: 0.7μV/75ohm (S/N 26dB)
FM Quieting Sensitivity: 1.6μV/75ohm (S/N 46dB)
FM Signal to noise ratio (Mono): 65dB
FM Selectivity(DIN): over 80dB (±400kHz)
FM Stereo Separation (1kHz): 35dB
MW Frequency Range: 531kHz ~ 1611kHz
MW Frequency step: 9kHz
MW Usable Sensitivity: 25μV (S/N 20dB)
LW Frequency Range: 153kHz ~ 279kHz
LW Usable Sensitivity: 45μV (S/N 20dB)

CD Specifications
Laser Diode: GaAIAs
Digital Filter(D/A): 8 Times Over Sampling
Digital/Analogue Converter: 24 Bit
Spindle Speed: 500 ~ 200rpm (CLV: 1 times)
Wow & Flutter: Below Measurable Limit
Frequency Response: 10Hz ~ 20kHz (±1dB)
Total Harmonic Distortion: 0.01% (1kHz)
Signal to Noise Ratio: 110dB (1kHz)
Dynamic Range: 93dB
MP3 Decoder: Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder: Compliant with Windows Media Audio
AAC Decoder: AAC-LC".m4a" Files

USB Specifications
USB Version compatibility: 1.1 / 2.0
File System: FAT 16/32
Maximum Supply current: 500mA

Audio Specifications
Maximum Power: 50W x 4
Output Power (DIN45324,+B=14.4v): 30W x 4
Preout Level: 2500mV / 10kOhm,
Preout Impedance: ≤ 600Ohm
Speaker Impedance: 4Ohm ~ 8Ohm
AUX Frequency Response: 20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage: 1200mV
AUX Input Impedance: 10kOhm
Bass Tone Control: 100Hz ±8dB
Middle Tone Control: 1kHz ±8dB
Treble Tone Control: 12.5kHz ±8dB

Bluetooth specifications
Technology bluetooth: 2.0 certified
Frequency: 2.402 - 2.48 GHz
Output power: +4dBm(max), 0dBm (AVE) power class 2
Maximum range Line of sight approx.: 10 meter

General Specifications
Operating voltage: 14.4V (11 ~ 16V Allowable)
Maximum Current Consumption: 10A
Dimensions (WxHxD): 182 x 53 x 155mm
Weight: 1300gr
