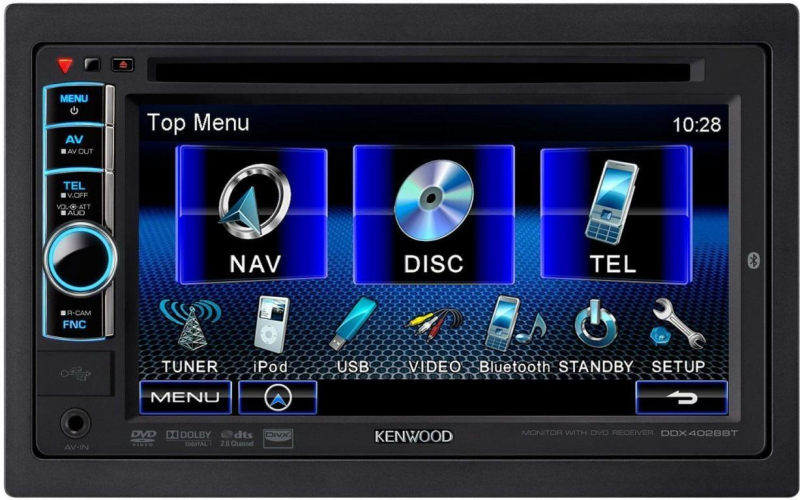

Kenwood DDX-4028BT

6.1" širokouhlá 2DIN multimediálna jednotka s DVD, iPod/iPhone ovládaním

General Features
DIN Size: 2 DIN
Security Code Function ( user set): Yes
On Screen Display (OSD) Operation: Yes
Smooth GUI: Yes
Selectable GUI Background Wallpaper: Yes
Key Illumination: Variable colour
Rotary Encoder & Control Knob: Yes
Touch sensor: Yes
Installer Memory: Yes
Back-up Memory: Yes
Attenuator with Smooth Volume Return: Yes
Touch Sensor Tone: Yes
Digital Clock (24H): Yes
ISO connector: Yes
Bluetooth unit built-in: Yes
Optional navigation system unit: Yes, KNA-G620T
Firmware upgreadable: Yes

Monitor Features
In-Dash/On-Dash: In-Dash
Screen Type: TFT 6,1" Wide VGA
Display Mode: 4 Mode (Full/Just/Zoom/Normal)
High Resolution VGA Display: Yes
Screen Adjustments: Brigtness/Tint/Colour/Contrast/Black Level/Dimmer
Dimmer function: ON/OFF/Sync/Navi-Sync
Visual Source Mode: DVD/Video/USB/iPod/AV-in
Touch Panel: Yes
NTSC/PAL judge: Auto
Multimedia GUI Features
Colour Pallet: 256
Variable Colour illumination: Yes
Base Colour Class: 65000
Menu text: English, French, German, Italian, Spanish, Portuguese, Dutch, Greek, Turkish, Russian, Hebrew, Persian
Demonstration Mode: Yes
Background Customize: Yes
Picture in picture: Yes

Tuner Features
Radio Text Plus: Yes
Program Type Function (PTY): Yes
Enhanced Other Networks Function (EON): Yes
K3I - Clean Reception Tuner: Yes
FM Reception: Yes
AM (MW/LW) Reception: Yes
Presets: 24 Presets (18FM / 3LW / 3MW)
Station Select: List
Tuner preset/recall key: Yes
Automatic Memory Entry (AME): Yes
Up/Down Seek Tuning: Yes
Tuning mode (Auto1 / Auto2 / Manual): Yes
FM Stereo / Mono Selector: Yes

DVD-Features
Disc Capacity: 1 Disc(s)
DVD±R/RW Compatible: Yes
DVD Region Code: 2
VCD Compatible: Yes
CD-R/RW Compatible: Yes
CD Text: Yes
MP3: Yes
ID3 Tag: Yes
WMA: Yes
WMA Tag: Yes
AAC: Yes
AAC Tag: Yes
WAV: Yes
MPEG1/2 Video File (.mpg) Compatible: Yes
JPEG File (.jpg) Compatible: Yes
DivX (Certified): Yes
CD-DA Repeat/Scan/Random play: Yes
Resume Play: Yes
Disc Menu Direct Touch: Yes
Picture Control (JPEG): Yes
JPEG slide show: Yes
On screen display (OSD): Yes

USB Features
USB terminal: Yes, Front
USB Type: USB1.1 / USB 2.0
Kenwood Music Editor Lite: Yes, download software from website
MP3 playback with ID3 Tag Display: Yes
WMA (Windows Media File) playback: Yes
AAC (Advanced Audio Codec) playback: Yes
WAV (Waveform Audio Format) playback: Yes
MPEG1 Video decoder: Yes
MPEG2 Video Decoder: Yes
DivX Video Decoder: Yes
Repeat/Scan/Random search: Yes
Resume play: Yes

iPod Features
Made for iPod & iPhone*: Yes
USB Video & Audio direct control (2 wire): with optional KCA-iP22F
Music playback: Yes
Video playback: Yes
Album art support: Yes
Music library search: Yes
Works with iPod Classic*: 80G & 120G
Works with iPod Video*: 5th/6th generation
Works with iPod Touch*: 1st/2nd generation
Works with iPod Nano*: 1st/2nd/3rd/4th/5th Gen
Works with iPhone*: Yes
Battery charge + power control: Yes
1A current capability: Yes
* Always update to latest Apple firmware: .

Audio features
Max. Output Power (MOSFET Power IC): 4 x 50W
Pre-out: 2RCA: Front/Rear
Pre-out Output Level: 4V
Auxiliary Input: AV Front Input
Rear / Subwoofer Switchable: Yes
Subwoofer Reference Level Adj.: Yes
Source Tone Control & Memory: Bass / Mid / Treble
Balance/Fader Control: Yes
Loudness Control: Yes
Att.(-20dB) with smooth Volume Return: Yes
System Q (Preset Sound Control): Yes
System E's+ (Built-in HPF & LPF): Yes
Beep On/Off: Yes

Video Features
Audio/Video Output: 1 RCA
Front Audio/Video input: Yes, 1 mini jack
Video-In for Rear-view Camera: 1 dedicated video input (RCA)
Advanced navigation terminal: Yes
DVD Menu Direct Touch Operation: Yes

Connectivity
OEM Wired Remote Control: Yes
Parking sensor wire: Yes
Reverse sensor wire: Yes
Power Control (P.CON) wire: Yes
2-way (Tel/Navi) mute wire: Yes
Dimmer control wire: Yes
Advanced navigation RGB terminal: Yes
External microphone input: Yes

Bluetooth General Features
Hands free Profile (HPF): Yes
Advanced Audio Distribution Profile (A2DP): Yes
Phonebook Access Profile (PBAP): Yes
Voice recognition dialing: Yes
Audio/Video Remote Control Profile (AVRCP): Yes
Short Message Service (SMS): Yes, Allert only
Easy pairing function: Yes
Phone device status display: Yes
Audio device status display: Yes
Signal strength display: Yes
Remaining battery display: Yes
High-quality noise canceling microphone: Yes

Tuner Specifications
FM Frequency Range: 87.5MHz ~ 108MHz
FM Usable Sensitivity: 0.7μV/75ohm (S/N 30dB)
FM Quieting Sensitivity: 1.6μV/75ohm (S/N 50dB)
FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono): 65dB
FM Selectivity(DIN): over 80dB (±400kHz)
FM Stereo Separation (1kHz): 35dB
MW Frequency Range: 531kHz ~ 1611kHz
MW Frequency step: 9kHz
LW Frequency Range: 153kHz ~ 279kHz

DVD Specifications
D/A Converter: 24 bit
Video decoder: MPEG1/MPEG2/DivX (Max 2Mbps)
Audio decoder: Linear PCM/Dolby Digital/dts/MP3/WMA/AAC/WAV
Wow & Flutter: Below Measurable Limit
Freq. Resp. (96kHz Sampling): 20Hz ~ 22kHz
Freq. Resp. (48kHz Sampling): 20Hz ~ 22kHz
Freq. Resp. (44,1kHz Sampling): 20Hz ~ 20kHz
Total Harmonic Distortion: 0.01% (1kHz)
Signal to Noise Ratio: 99dB (1kHz)
Dynamic Range: 98dB
Disc Format: DVD-Video/Video-CD/CD-DA
Sample Frequency: 44.1kHz/48kHz
Quantifying bit number: 16/20/24bit

USB Specifications
USB Version compatibility: 1.1 / 2.0
File System: FAT 16/32
Maximum Supply current: 1000mA
D/A Converter: 24 bit
MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
WMA Decode: Compliant with Windows Media Audio
AAC Decode: AAC-LC "m4a" Files
WAV Decode: Linear - PCM Files
Acceptable video files: MPEG1, MPEG2, DivX (max 2Mbps)

Audio Specifications
Maximum Power: 50W x 4
Output Power (DIN45324,+B=14.4v): 30W x 4
Preout Level: 4000mV / 10kOhm,
Preout Impedance: ≤ 600Ohm
Speaker Impedance: 4Ohm ~ 8Ohm
Bass Tone Control: 100Hz ±8dB
Middle Tone Control: 1kHz ±8dB
Treble Tone Control: 12.5kHz ±8dB

Video Specifications
Color System of External Video Input: NTSC/PAL
External Video Input Level (RCA): 1Vpp / 75Ohm
External Audio Max. Input Level (RCA): 2V / 25kOhm
Video Output Level (RCA): 1Vpp / 75Ohm
Audio Output Level (RCA): 1.2Vpp / 10kOhm

Monitor Specifications
Screen size (Diagonal): 6.1 Inches Wide
Screen Size (WxH): 136.2 x 72mm
Display system: Transparent TN LCD Panel
Drive system: TFT Active Matrix System
Number of Pixels: 1152000pixels (800(H) x 480(V) x RGB)
Effective pixels: 99.99%
Pixel arrangement: RGB Striped
Back lighting: LED (Light Emitting Diode)

Bluetooth specifications
Technology: bluetooth 2.0 certified
Frequency: 2.402 - 2.48 GHz
Output power: +4dBm(max), 0dBm (AVE) power class 2
Maximum range: Line of sight approx. 10 meter
Handsfree profile (HFP): Yes
Advanced audio distribution profile (A2DP): Yes
Audio/Video remote control profile (AVRCP): Yes
Object push profile (OPP): Yes
Phonebook access profile (PBAP): Yes

Accessories
Release keys: 2 pieces
Escutcheon: Yes
Installation Sleeve: Yes
DC cord (Molex to ISO): 20 cm
Handsfree Microphone: with 300 cm cable

General Specifications
Operating voltage: 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption: 10A
Dimensions (WxHxD): 182 x 112 x 163mm
Weight: 2000gr
Operation Temperature Range: -10°C ~ 60°C
Storage Temperature Range: -20°C ~ 85°C
