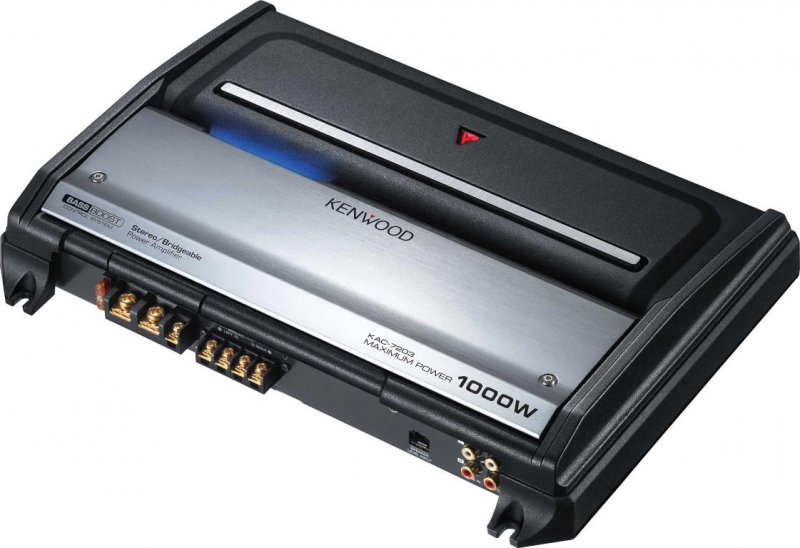

KAC-7203
Vysokokvalitný stereo zosilňovač (250W x 2 @ 2Ω)
AMPLIFIER FEATURES
Load Capability 2Ω Stable
Maximum Output Power 1000W
Rated Power Output 170W x 2 (4Ω)
Rated Power Output 250W x 2 (2Ω)
Bridged Power Output (4Ω) 500W x 1
CEA-2006 Compliant Yes
Low-pass Filter Yes
High-pass Fliter Yes
Bass Boost Circuit Yes
Switched Mode Power supply Yes, with Power MOS-FET
Power Indicator Yes
Blue Illumination Yes
Line in RCA (Gold Plated) A/B
Line out 1 RCA (Gold Plated)
Speaker level Input Yes
Single Side Terminals Yes
Gold Plated Power & Speaker Terminals Yes
Die-Cast Aluminium Heat Sink Yes
AMPLIFIER SPECIFICATIONS
Maximum Power Output (4Ω) 250W x 2
Rated Power Output (4Ω, 14,4V) 170W x 2 (20Hz ~ 29000Hz, 0.08%THD)
Rated Power Output (2Ω, 14,4V) 250W x 2 (1000Hz, 0.8%THD)
Bridged Power Output (4Ω, 14,4V) 500W x 2 (1000Hz, 0.8%THD)
Rated Power Output (CEA-2006) 170Watts RMS x 2 at 4 ohms and 1% THD
Low-pass Filter 50~200Hz (18dB/oct)(B-Channel)
High-pass Fliter 50~200Hz (12dB/oct)
Bass Boost Circuit 0~18dB (Variable)
Bass Boost Frequency 40Hz
Input Sensitivity 0.2 ~ 5V
Input Impedance 10kΩ
Signal to Noise Ratio 100dB
Signal To Noise Ratio (CEA-2006) 92dBa (Reference: 1 Watt into 4 Ohms)
Frequency response (+0dB, -3dB) 5Hz ~ 50000Hz
Operating voltage 14.4V (11V ~ 16V allowable)
Dimensions (WxHxD) 380 x 64 x 286(mm),
Weight 4.1kg
Current Consumption 40A
Záruka | 24 mesiacov |
---|
