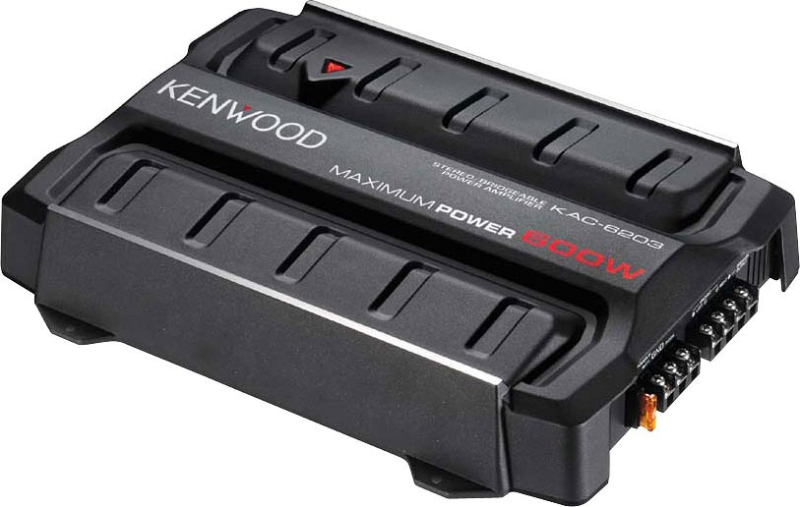

KAC-6203

Kvalitný stereo zosilňovač (150W x 2 @ 2Ω)

AMPLIFIER FEATURES
Load Capability 2Ω Stable
Maximum Output Power 600W
Rated Power Output 100W x 2 (4Ω)
Rated Power Output 150W x 2 (2Ω)
Bridged Power Output (4Ω) 300W x 1
Low-pass Filter Yes
Power Indicator Multifunctional
Line in RCA
Input Selector A/AB
Line out RCA
Speaker level Input Yes
Die-Cast Aluminium Heat Sink Yes
DC cable Supplied No

AMPLIFIER SPECIFICATIONS
Maximum Power Output (4Ω) 300W x 2
Rated Power Output (4Ω, 14,4V, DIN:4524) 150W x 2
Rated Power Output (2Ω, 14,4V) 60W x 2 (1000Hz, 1%THD)
Bridged Power Output (4Ω, 14,4V) 300W x 1 (1000Hz, 1%THD)
Low-pass Filter 80Hz
Input Sensitivity 0.2 ~ 5V
Input Impedance 10kΩ
Signal to Noise Ratio 100dB
Frequency response (+0dB, -3dB) 10Hz ~ 50000Hz
Operating voltage 14.4V (11V ~ 16V allowable)
Dimensions (WxHxD) 330 x 60 x 230(mm),
Weight 2.7kg
Current Consumption 40A
