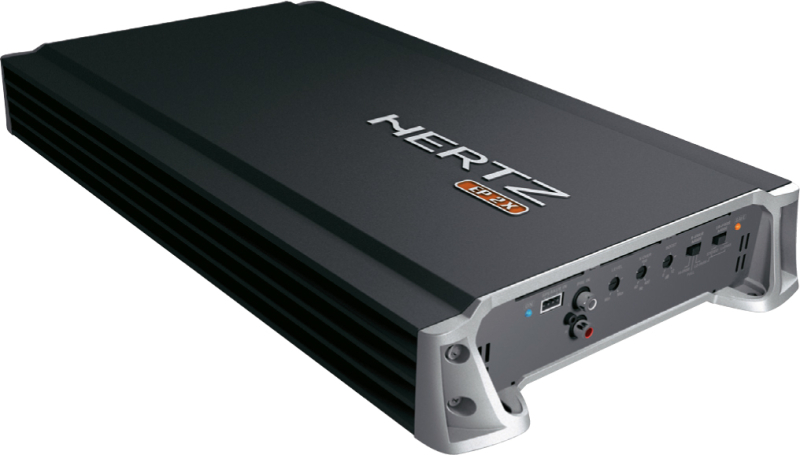

EP 2x
2-kanálový zosilňovač, 2x220W (4Ω), 2x350W (2Ω), 1x700W (4Ω) - RMS@14,4 VDC
Power Supply
Power supply voltage: 11÷15 VDC
Idling current: 1.5A
Idling current when off: 0.02 mA
Consumption @1, 14.4 VDC (Max Musical Power): 45A
Amplifier stage
Distorsion - THD(100Hz @ 4Ω): 0.05%
Bandwidth (-3 dB): 7 ÷ 60kHz
S/NRatio (A weighted @ 1V): 100 dB
Damping factor (100Hz @ 4Ω): 130
Pre-In sensitivity: 0.3 ÷ 5 V
Speaker-In sensitivity: 1.4 ÷ 24V
Pre-In impedance: 15 kΩ
Speaker-In impedance: 470 Ω
Load impedance (MIN): 2Ch: 2Ω; 1Ch: 4Ω
CEA 2006-A RATINGS
RMS Power (4Ω, ≤ 1%THD+N,14.4 Volts): 220Wx2ch
S/N Ratio (ref. 1W output): 77 dBA
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
220 W x 2 (4Ω)
350 W x 2 (2Ω)
700 W x 1 (4Ω)
Other functions
Remote In: 6 ÷ 15 VDC - 1 mA
Remote Out : 12 VDC - 15 mA
ART™: Automatic Remote Turn-On/Off with Speaker-In
Fuse: 3 x 30 A
Filters & Controls
Full / Hi-Pass / Lo-Pass: 40÷400Hz @ 12dB/Oct.
Bass Boost: 0 ÷ +12dB @ 45Hz
Inputs/Outputs
Input: PRE/Speaker
Size
Max size (mm): 240 x 450 x 54
Weight (kg): 4.77
Záruka | 24 mesiacov |
---|
