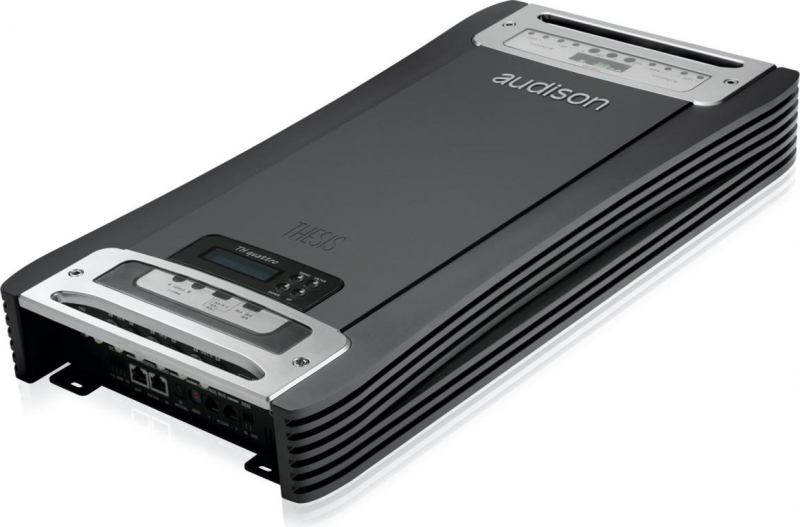

TH quattro
4-kanálový high-zosilňovač, 4x190W (4Ω), 4x290W (2Ω), 2x380W (1Ω), 2x190+1x580 (4Ω), 2x290+1x760W (2Ω), 2x580W (4Ω), 2x760W (1Ω), DF 110, poistka 100A
POWER SUPPLY
Voltage: 11 ÷ 15 VDC
Idling current: 2.6 A
Idling current when off: 0.04 mA
Consumption @ 14.4 VDC (Max Musical Power):105 A
Remote In: 7 ÷ 15 VDC (1 mA)
Remote Out : 12 VDC (50 mA)
Fuse (AFS): 100 A
AMPLIFIER STAGE
Distortion - THD (1kHz @ 4 W): 0.06 %
Bandwidth (-3 dB): 5 ÷ 80k Hz
S/N ratio (weighted A @ 1 V): 106 dBA
Damping factor (1 kHz@4Ω): 110
Pre-In sensitivity: 0.3 ÷ 5.0 VRMS
Pre-In impedance: 15 kΩ
Load impedance (MIN): 2 Ch 1 Ω
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
- 4 Ch x 4 Ω 190 W x 4
- 4 Ch x 2 Ω 290 W x 4
- 4 Ch x 1 Ω 380 W x 4
- 3 Ch x 4 Ω 190 W x 2 + 580 W x 1
- 3 Ch x 2 Ω 290 W x 2 + 760 W x 1
- 2 Ch x 4 Ω 580 W x 2
- 2 Ch x 2 Ω 760 W x 2
CEA SPECIFICATIONS
Output power @ 4 Ω, ≤ 1% THD+N, 14.4 Volts: 150 W x 4 Ch
SN ratio (ref. 1 W output): 85 dBA
ASC (Audison Status Controller) FUNCTIONS
AMP IDentifications, DUAL POWER settings, ADLink inputs, ACLink digital bass, DRC controls, ACNet software,Status Display, Protections
INPUTS/OUTPUTS
Input: PRE / SP-DIF OPTICAL (192 kHz - 24 bit) / ADLink
Output: PRE Bypass / ADLink
FILTERS
Filters: Removable module: (Hi-pass / Lo-pass / Band-pass 12 - 24dB) 32 steps 18 ÷ 7.5k Hz
Amp Chain Mode: PRE IN / OUT
SIZE
BxLxH (mm/inches): 259 x 67 x 510 / 10”1/4 x 2”11/16 x 20”1/8
Weight (kg/lb): 10,3 kg / 22.71 lb
Záruka | 24 mesiacov |
---|
