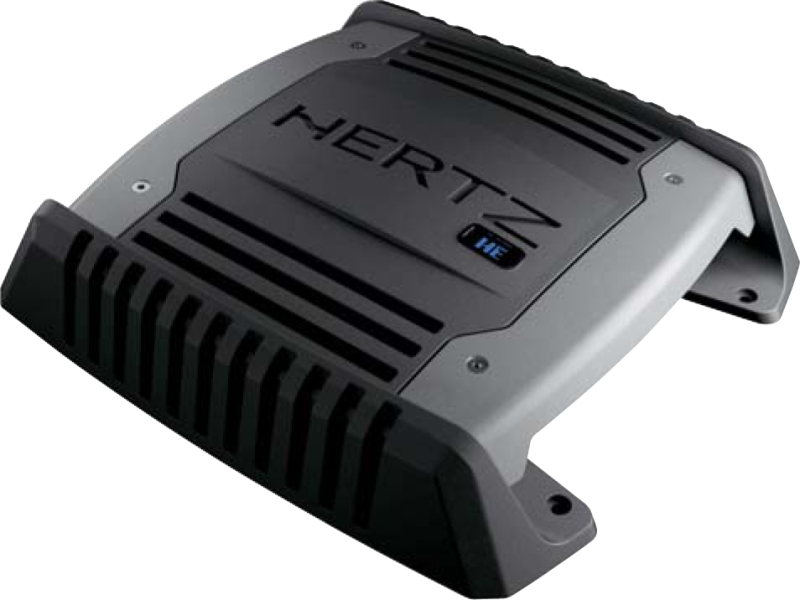

HE 1D

HE 1D

d-class monozosilňovač, 1x200W (4Ω), 1x320W (2Ω), 1x450W (1Ω) - RMS@14,4 VDC

Power Supply
Power supply voltage	11 ÷ 15 VDC
Idling current	0.8 A
Idling current when of	0.04 mA
Consumption @ 1Ω, 14.4 VDC (Max Musical Power)	23 A

Amplifier stage
Distortion - THD (100 Hz @ 4Ω)	0.15%
Bandwidth (-3 dB)	15 Hz ÷ 250 Hz
S/N Ratio (A weighted @ 1 V)	100 dB
Damping factor (100 Hz@ 4Ω)	150
Pre-In sensitivity	0.3 ÷ 5V
Pre-In impedance	15 kΩ
Speaker-In sensitivity	1.4 ÷ 24V
Speaker-In impedance	470 Ω
Load impedance 1 Ch	4 ÷ 1 Ω

CEA 2006-A RATINGS
RMS Power (4 Ohms, ≤1% THD+N, 14.4 Volts): 150W x 1 Ch
S/N Ratio (ref. 1W output): 60 dBA

OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
1 Ch	200W x 1 (4Ω)
1 Ch	320W x 1 (2Ω)
1 Ch	450W x 1 (1Ω)

Other features
Remote In	6 ÷ 15 VDC - 1 mA
Remote Out	12 VDC - 15 mA
ART™	Automatic Remote Turn-On/Off with Speaker-In
Fuse	2 x 30 A

Input/Outputs
Input	PRE / Speaker
Output	PRE Bypass

Filters & Controls
Lo-Pass	Lo-pass: 40 ÷ 250 Hz @ 24dB/Oct.
Subsonic	Hi-pass: 15 ÷ 40 Hz @ 24dB/Oct.
Bass Boost	0 ÷ +12 dB @ 50 Hz
Output Phase Control (Continuous)	0 ÷ 180°

Dimensions
Max size (mm)	266 x 389 x 63.5
Weight (kg)	2.503
