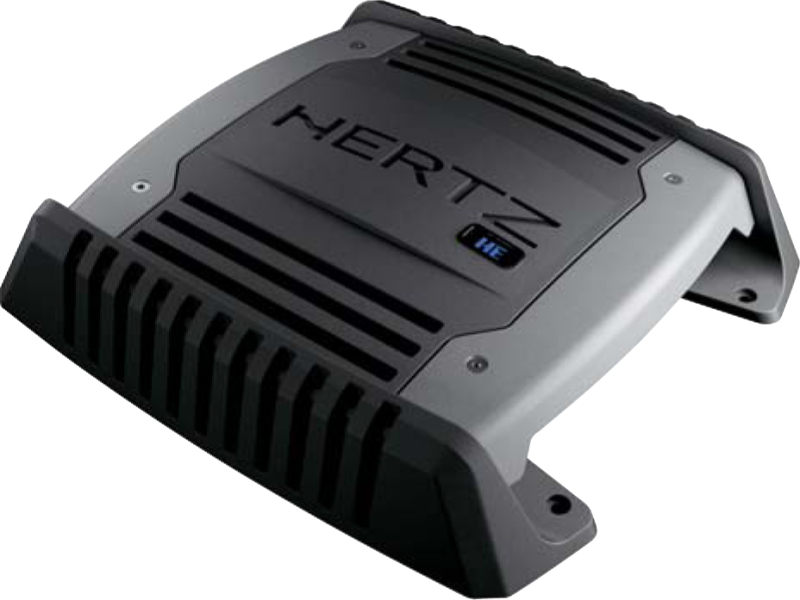

HE 2

HE 2

2-kanálový zosilňovač, 2x70W (4Ω), 2x100W (2Ω), 1x200W (4Ω) - RMS@14,4 VDC

Power Supply
Power supply voltage	11 ÷ 15 VDC
Idling current	0.7 A
Idling current when of	0.02 mA
Consumption @ 1Ω, 14.4 VDC (Max Musical Power)	12 A

Amplifier stage
Distortion - THD (1 kHz @ 4Ω)	0.04%
Bandwidth (-3 dB)	7 ÷ 45 kHz
S/N Ratio (A weighted @ 1 V)	104 dB
Damping factor (1 kHz@ 4Ω)	150
Pre-In sensitivity	0.3 ÷ 5V
Pre-In impedance	15 kΩ
Speaker-In sensitivity	1.4 ÷ 24V
Speaker-In impedance	470 Ω
Load impedance 2 Ch 1 Ch	2 Ω 1 Ω

CEA 2006-A RATINGS
RMS Power (4 Ohms, ≤1% THD+N, 14.4 Volts): 55W x 2 Ch
S/N Ratio (ref. 1W output): 82dBA

OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
2 Ch	70W x 2 (4Ω)
2 Ch	100W x 2 (2Ω)
1 Ch	200W x 1 (4Ω)

Other features
Remote In	6 ÷ 15 VDC - 1 mA
Remote Out	12 VDC - 15 mA
ART™	Automatic Remote Turn-On/Off with Speaker-In
Fuse	1 x 20 A

Input/Outputs
Input	PRE / Speaker

Filters & Controls
Full / Hi-Pass / Lo-Pass	40 ÷ 400 Hz @ 12dB/Oct.

Dimensions
Max size (mm)	266 x 289 x 63.5
Weight (kg)	2.184
